C1020-L202000-0

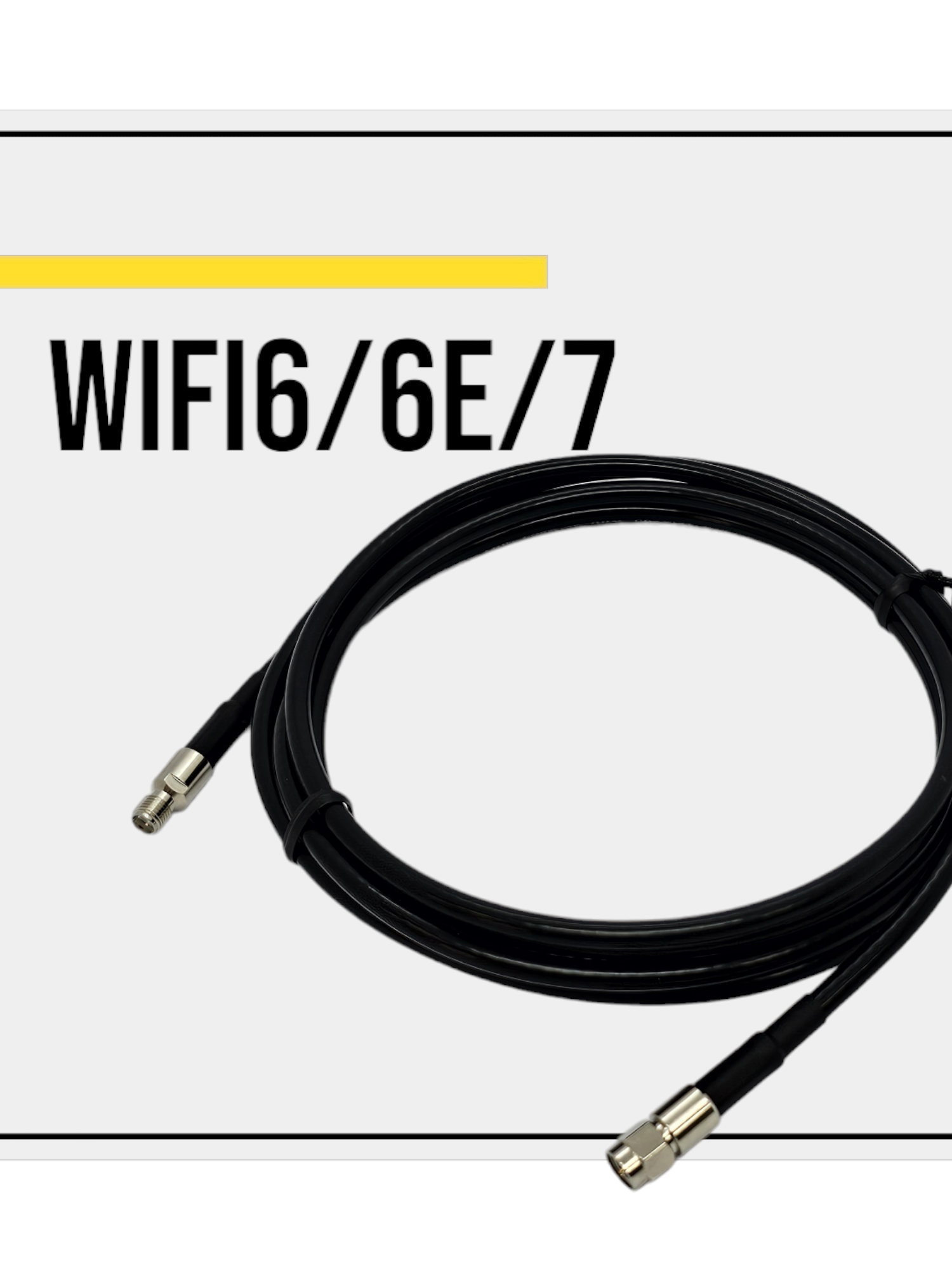

- Item No.:SMA PLUG TO SMA JACK CABLE
- Product Type:Cable Assembly
- Cable Type:RF195
- Connector1:SMA
- Gender1:Plug
- Connector2:SMA
- Gender2:Jack
- Drawing Download : Download
- Test Report :Contact Us
Impedance (Ohms) |
50 |
Connector 1 |
SMA Plug |
Connector 2 |
SMA Jack |
Body Finish |
Nickel |
Body Material |
Brass (C3604) |
Contact Finish |
Gold |
Contact Material |
Brass |
Insulator Material |
PTFE |
Max Frequency (GHz) |
8 |
VSWR |
1.35 Max |
Cable Type |
RF195 |
Length |
2M (meter) |
Application |
Wifi6/6E/7、Jump Line、Measurement、GSM |
Mating Cycles |
500 cycles min.(For Beryllium copper Contact Only) |
Package Type |
BAG |
