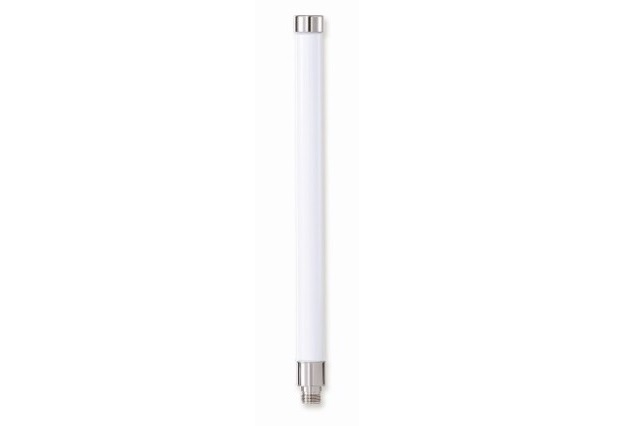

WPA-5024-01-NF
- Item No.:2.4/5GHz Dual Band Antenna, 6/8 dBi
- Product Type:Antenna
- Category:WLAN, Wifi
- Frequency:2.4 GHz/5 GHz
- Drawing Download : Download
- Test Report :Contact Us
|
Electrical Specifications |
|
|
Frequency Band |
5.125~5.875GHz – 2.4~2.5GHz |
|
Gain |
5G:8.0 dBi 2.4G:6.0dBi |
|
Impedance |
50 Ohm |
|
Polarization |
Vertical |
|
Max Power Handling |
100W |
|
Center frequency VSWR |
≦1.5 |
|
Vertical Beam width |
23° |
|
Horizontal Beam width |
360° |
|
Mechanical Specifications |
|
|
Connector |
N Type Female |
|
Connector Location |
Bottom |
|
Dimensions (L*W*D): |
Length 282mm, Diameter 22.5mm |
|
Antenna Weight |
120g |
|
Internal Material |
PCB |
|
Radome Material |
White Fiberglass |
|
Application |
Indoor / Outdoor |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +80 |
|
RoHS |
Yes |
